Custom Trailer

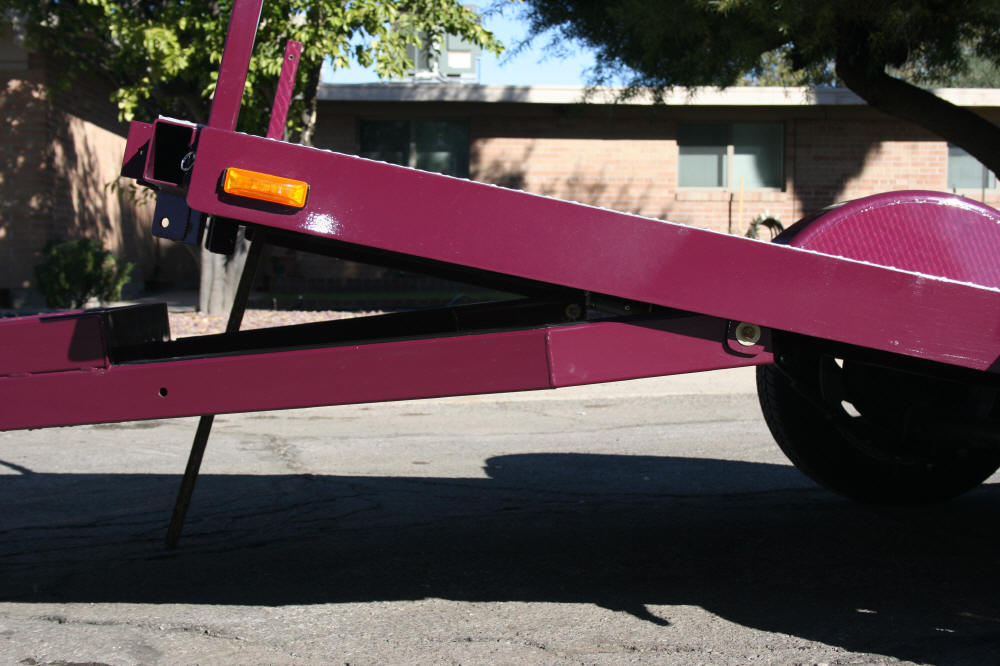

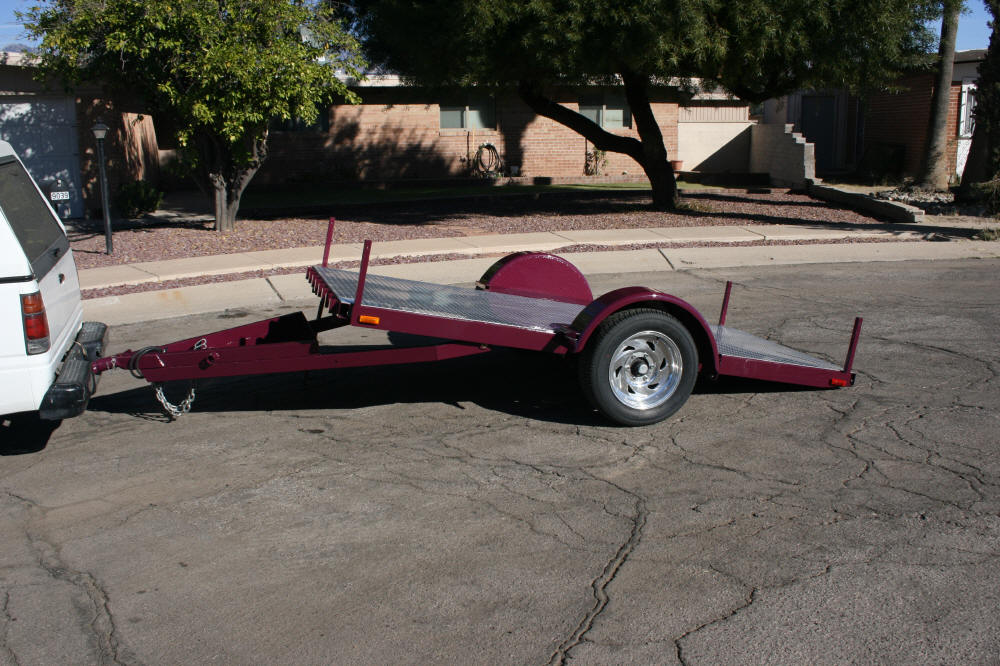

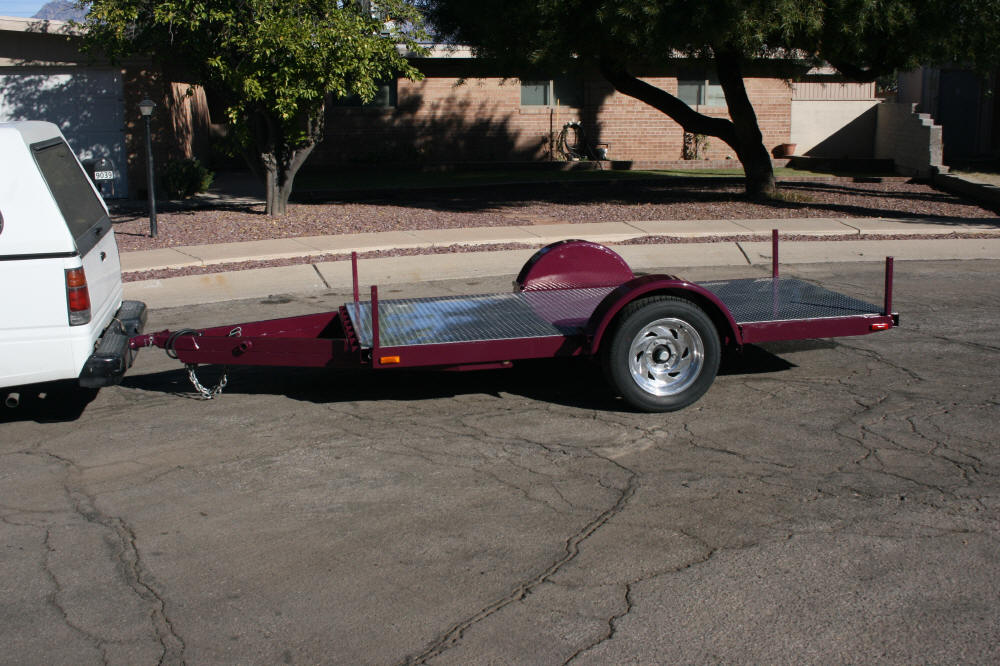

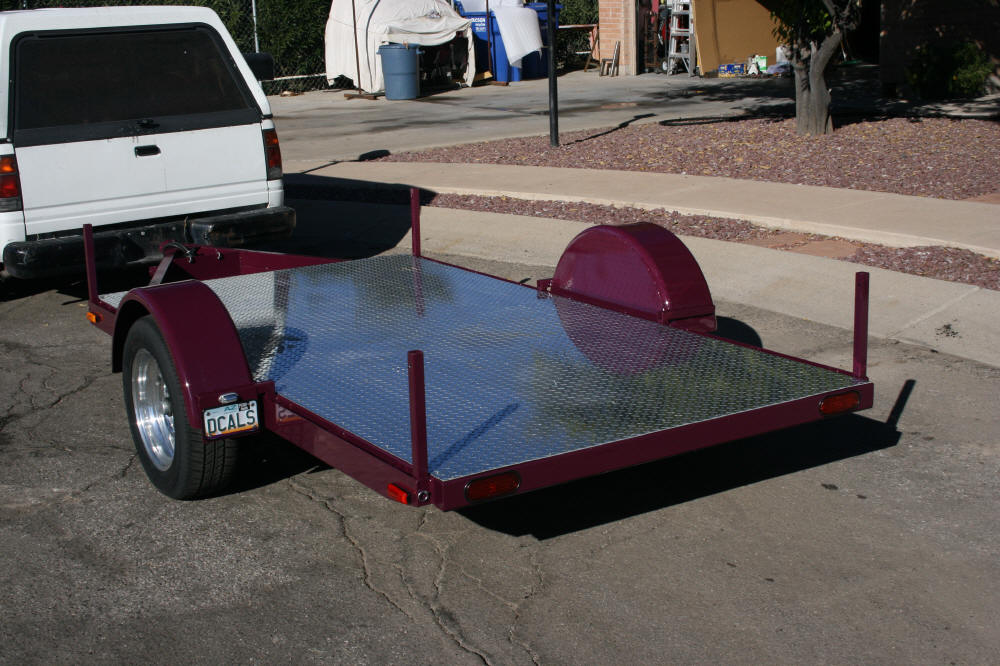

    I found in my searching for a bike and general purpose trailer, that no one made a heavy duty small trailer with the features I wanted.  So I designed and built my own.  It is a 5'X10' flat deck, tilt, lo-boy.

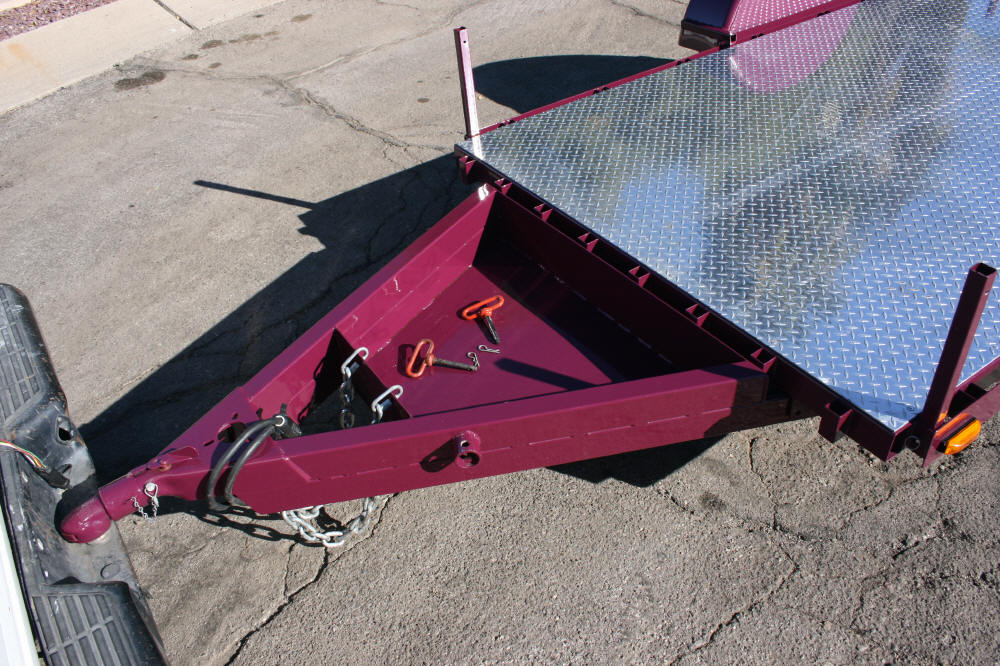

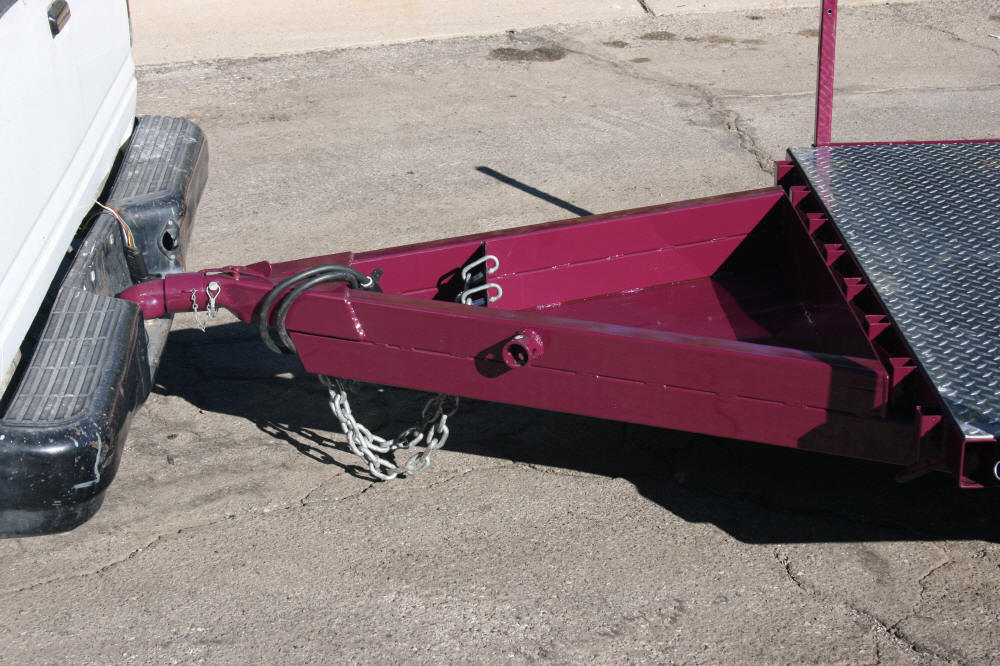

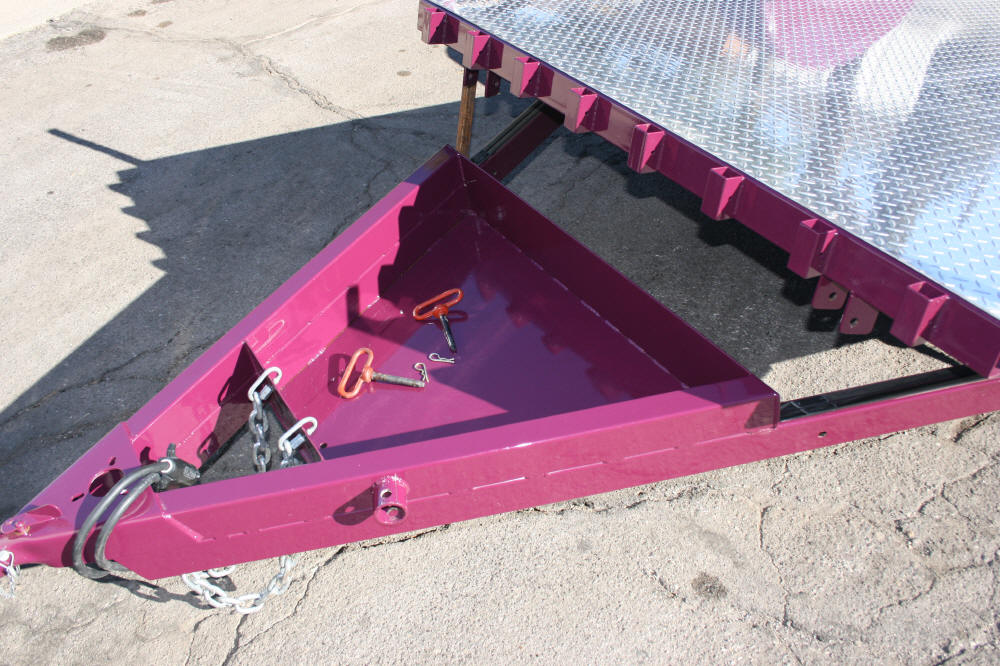

    I started with 2"X3" fully boxed channel, triple railed for strength, 1.5" cross beams, powder coated and cleared, fully decked with 2"X10" for deck strength and then topped off with .125" diamond plate aluminum.  It has a 4" drop axle rated at 3500lbs, 3000lbs springs, LED brake and marker lights, stake pockets all around for accessories and a double tongue for corrected hitch height and extra storage area.  The axle is located 4" behind center for better weight displacement and tilt capability.  This has given me a trailer great for loading and hauling bikes, as well as a great general purpose heavy duty trailer.  So much so, that even when I have a $40,000 bike on it, being pulled by a custom truck, people still comment on the trailer.
